FJ-HH5

Tells you what a piece is worth before you agree a price for it.

Point it at the material and get a reading in seconds. No lab, no waiting.

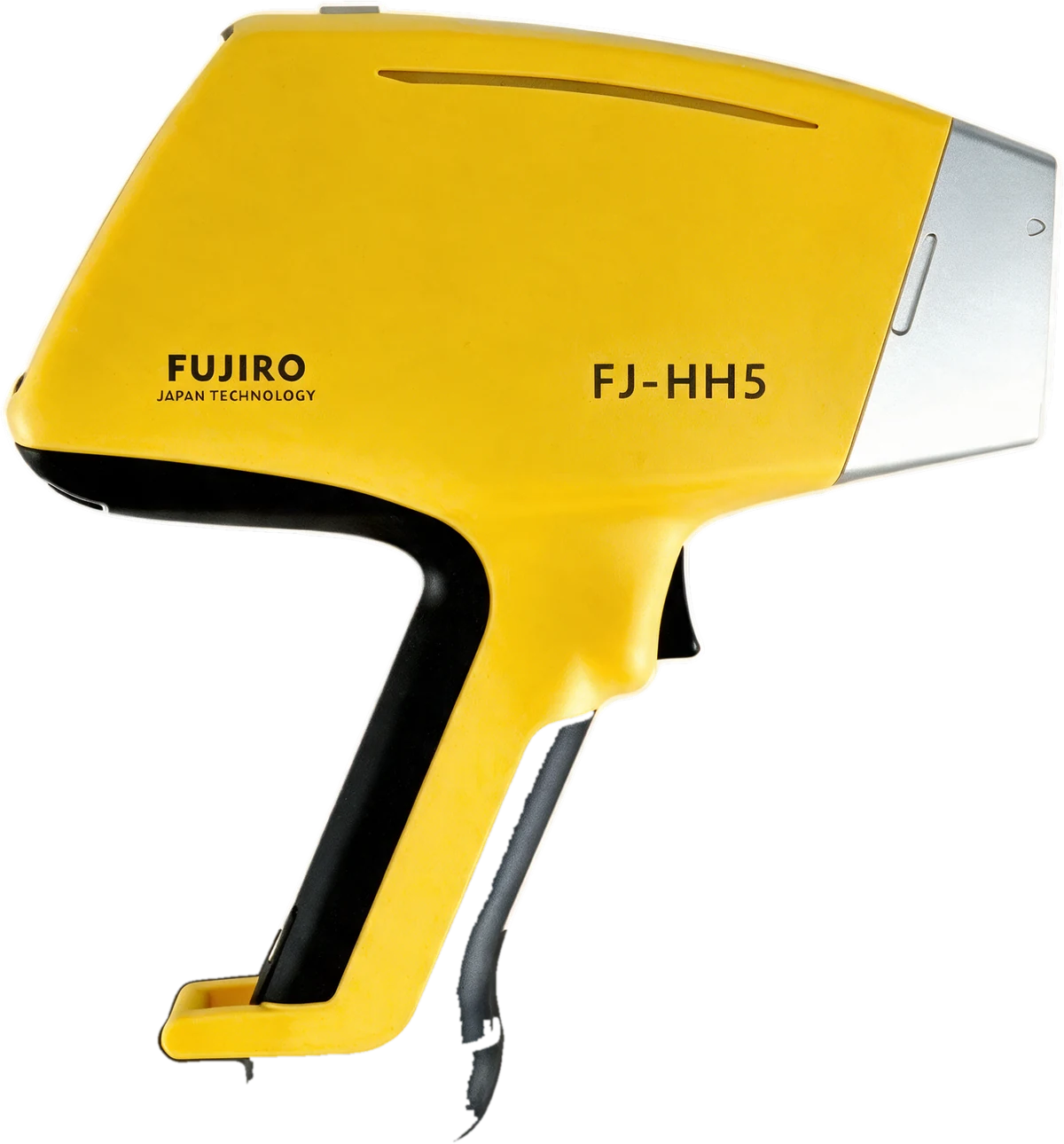

FJ-HH5 handheld XRF analyser

WHAT IT DOES

What it does.

The FJ-HH5 is a handheld X-ray fluorescence analyser. Point it at a piece of material and it reads the elements present and their proportions in seconds, on its own screen.

Nothing is cut, dissolved or sent to a lab. The reading happens where the material already is.

WHAT IT'S FOR

What it's for.

Knowing what you are holding before money changes hands. You are not paying on someone else's word, and you are not waiting days for a lab result.

WHERE IT'S USED

Where it's used.

Typical situations for a handheld analyser like this:

  • Checking incoming material before you agree to buy it.
  • Sorting scrap before it goes for shipment.
  • Settling a dispute over what a batch actually contains.
  • Counter verification in jewellery and pawn transactions.

SPECIFICATIONS

Specifications.

FJ-HH5 handheld XRF analyser: specification
Property Value
Dimensions (W × D × H) 254 × 79 × 280 mm
Weight 1.6 kg (with battery)
Voltage up to 50 kV
Current up to 200 µA
Detector BOOST Si-PIN
Screen 4.3 in
Storage 32 GB
Battery life ~8 h
Connectivity USB/Bluetooth
Operating temperature −20 to 50 °C
Element range K–U
Sample type solids

GET STARTED

Find out what your waste is worth.

Send us a sample. We assay it and tell you what is in it. No cost, no obligation.

Get a free waste assessment
